| Availability: | |
|---|---|
| Quantity: | |
Features
1. Excellent Abrasion Resistance – Protects wires from rubbing and wear.
2. Noise & Vibration Damping – Reduces rattling in automotive interiors.
3. High Tensile Strength – Reinforces wiring harnesses.
4. Conformable & Flexible – Wraps tightly around irregular shapes.
5. Thermal Insulation – Withstands moderate heat.
6. Moisture & Chemical Resistant – Protects against oils, fuels, and coolants.
7. Easy Tear – Hand-tearable for quick installation.
Applications
Wiring Harness Wrapping – Prevents chafing and electrical shorts.
Cable Bundling – Secures looms in engines and interiors.
Anti-Fray Edge Protection – Covers sharp metal/plastic edges.
Sound Deadening – Reduces vibrations in door panels and dashboards.
HVAC & Hose Securing – Insulates and protects hoses in engine bays.

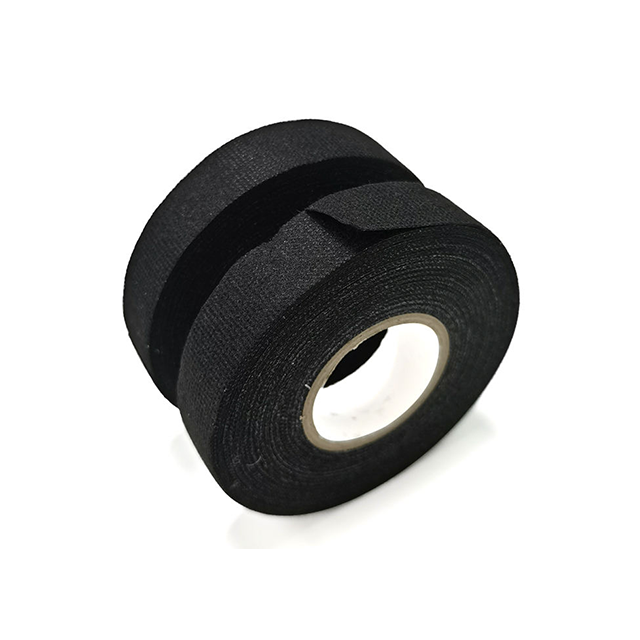

Automotive Polyster Fleece Tape
Item | Adhesive | Thickness | Peel Adhesion | Tensile Strength | Elongation% at break |
µm | N/in | N/in | ASTM D-3759 | ||
JTT693B-F3 | Hot Melt | 290 | 4.0↑ | 125↑ | 15% |
Description: Widely Used for wire harness in the automotive industry, sophisticated applications.

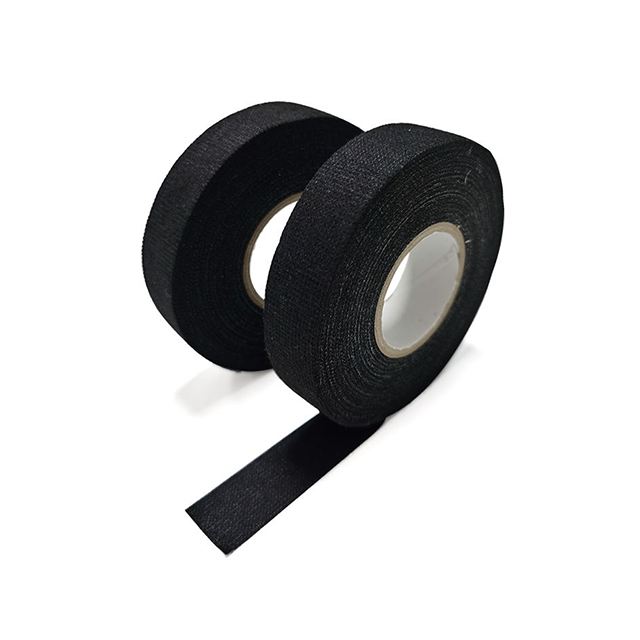

Automotive Polyster Fabric Tape
Item | Adhesive | Thickness | Peel Adhesion | Tensile Strength | Elongation% at break |
µm | N/in | N/in | ASTM D-3759 | ||
JTT8939-F3 | Hot Melt | 180 | 6.25↑ | 180↑ | 18% |
Description: Widely Used for the parts with high demand for noise reduction inside the car.
Automotive Wire Harness Tape
Item | Thickness | Initial Tack | Peel Adhesion | Tensile Strength | Elongation% at break |
µm | ball(#) | N/in | N/in | ASTM D-3759 | |
JTTEXA10-Z | 100 | 5.0↑ | 3.0↑ | 50↑ | 160% |
Description: Specially designed for winding and strapping of automotive wiring harness.
