Features
1. Excellent Electrical Insulation – High dielectric strength.
2. Flame Retardant – Self-extinguishing properties.
3. Moisture & Chemical Resistant – Protects against humidity, oils, and mild acids.
4. High Elasticity & Conformability – Stretches tightly around wires and irregular shapes.
5. Good Adhesion – Sticks firmly to PVC, rubber, and other surfaces.
6. UV & Weather Resistant – Suitable for outdoor use .

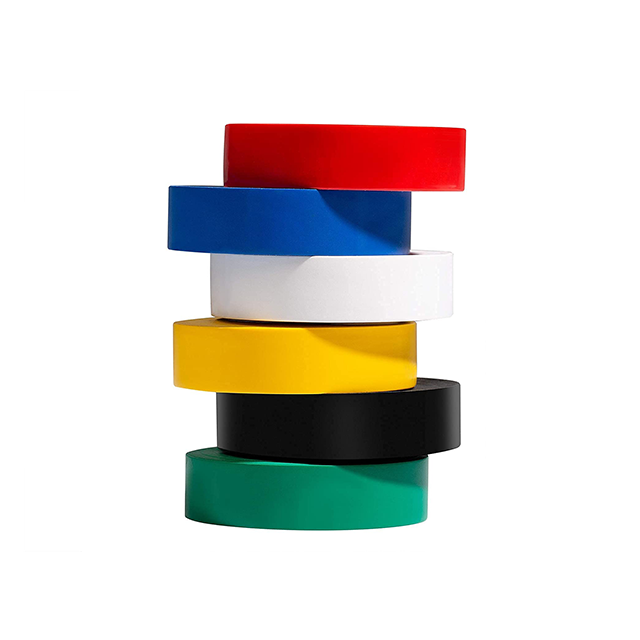

7. Available in Multiple Colors – For phase identification (e.g., black, red, yellow, blue, green/yellow for earth).
Applications

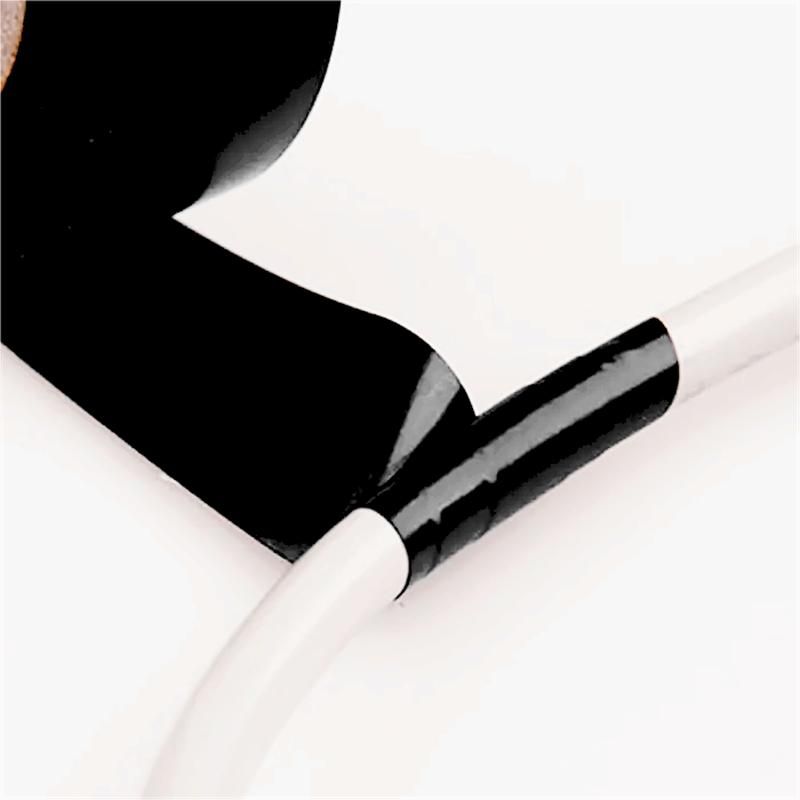

Electrical Wiring: Insulating exposed wires, splicing cables.
Electronics: Securing PCB connections, preventing short circuits.
Automotive: Wiring harness wrapping, protecting terminals.
HVAC & Appliances: Sealing wire connections in motors and compressors.
DIY & Home Repairs: Fixing frayed cords, bundling cables.
PVC Insulation Tape (Economical)
Item | Thickness | Initial Tack | Peel Adhesion | Tensile Strength | Elongation% at break |
µm | ball(#) | N/in | N/in | ASTM D-3759 | |
JTTEA12-Z | 120 | 7.0↑ | 3.0↑ | 50↑ | 160% |
JTTEA13-Z | 130 | 7.0↑ | 3.0↑ | 58↑ | 170% |
JTTEA15-Z | 150 | 7.0↑ | 3.0↑ | 62↑ | 170% |
JTTEA18-Z | 180 | 7.0↑ | 3.0↑ | 70↑ | 180% |
JTTEB12-F | 120 | 7.0↑ | 3.0↑ | 50↑ | 150% |
JTTEA13-F | 130 | 7.0↑ | 3.0↑ | 55↑ | 170% |
JTTEA18-F | 180 | 7.0↑ | 3.0↑ | 65↑ | 180% |
Description: Suitable for winding and wrapping conductive cables.
PVC Insulation Tape (Premium)
Item | Thickness | Initial Tack | Peel Adhesion | Tensile Strength | Elongation% at break |
µm | ball(#) | N/in | N/in | ASTM D-3759 | |
JTTEA13-ZCE | 130 | 5.0↑ | 4.5↑ | 50↑ | 160% |
JTTEA15-ZCE | 150 | 5.0↑ | 4.5↑ | 60↑ | 160% |
JTTEA16-ZCE | 160 | 5.0↑ | 4.5↑ | 65↑ | 160% |
JTTEWG18-ZU | 180 | 5.0↑ | 4.0↑ | 75↑ | 150% |
Description: Suitable for winding and wrapping conductive cables, in line with local electrical certification standards.
PVC Insulation Tape (Environmentally Friendly)
Item | Thickness | Initial Tack | Peel Adhesion | Tensile Strength | Elongation% at break |
µm | ball(#) | N/in | N/in | ASTM D-3759 | |
JTTEA12-FRE | 120 | 5.0↑ | 4.5↑ | 50↑ | 160% |
JTTEWG18-ZRE | 180 | 5.0↑ | 4.5↑ | 70↑ | 180% |
Description: Suitable for winding and wrapping conductive cables, special for Europe and America.
High-Voltage Self-Fusing Rubber Tape
Item | Adhesive | Thickness | Peel Adhesion | Tensile Strength | Elongation% at break |
µm | N/in | N/in | ASTM D-1000(KV) | ||
JTTGE76 | Natural Rubber | 760 | 12.0↑ | 600% | 5 |
Description: Widely used for main insulation protection of high voltage cables.
