Tips To Use Aluminum Foil Tape for Waterproof Repairs

Water leaks and moisture intrusion pose massive risks to property integrity. Standard quick fixes often fail under mechanical stress. This failure quickly leads to severe, highly costly secondary damage. You need specialized moisture-barrier solutions to protect your infrastructure. We typically find these solutions within the broader category of industrial Adhesive Tapes. However, grabbing a basic roll from the hardware store will not suffice. An Aluminum Foil Tape acts as a highly effective barrier for sealing out water. Yet, its success depends entirely on proper tape selection and flawless execution. You must match the specific adhesive chemistry to your environment.

We present a no-nonsense, evidence-based guide here. You will learn how to select the right foil tape specifications for your project. We will show you how to prepare surfaces perfectly to prevent premature adhesion failure. Finally, you will discover the precise mechanical steps needed to execute waterproof repairs that actually last.

Key Takeaways

• Material Selection Matters: Not all foil tapes are waterproof. Butyl rubber-backed foil tapes offer the highest moisture resistance compared to standard acrylic adhesives.

• Preparation is Non-Negotiable: Even the most aggressive industrial tape will fail if applied over debris, grease, or standing water.

• Application Mechanics: Proper tension, a minimum 0.5-inch overlap on seams, and mechanical pressure (using a squeegee) are required to create a true waterproof seal.

• Understand Limitations: Foil tape is an excellent moisture and vapor barrier but should not be used as a primary fix for highly pressurized plumbing lines.

The Anatomy of Waterproofing: Why Not All Adhesive Tapes Work

Consumers routinely confuse water-resistant tapes with true water-proof tapes. This simple misunderstanding causes countless repair failures. Standard cloth or polymer tapes possess woven or porous backings. They might repel a light splash initially. However, they eventually allow moisture penetration straight through their backing. The capillary action draws water directly into the adhesive layer. Once water reaches the adhesive, the chemical bond dissolves completely. The patch then lifts and fails instantly.

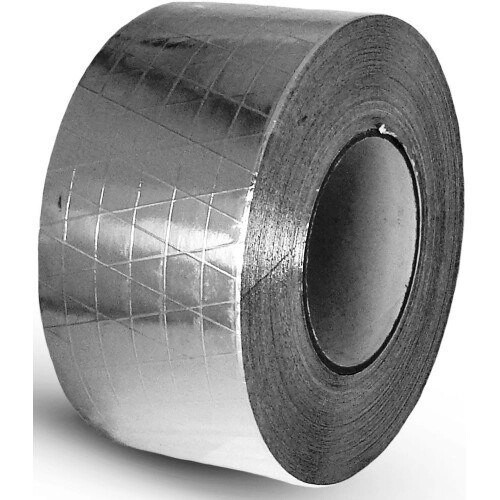

The physical structure of metal foil makes all the difference. Metal foil backings typically range from 0.05mm to 0.2mm in thickness. This dense metallic layer creates an absolute, impermeable barrier. It completely blocks water vapor, humidity, and liquid. Moisture simply cannot penetrate solid metal. Furthermore, foil backings reflect heat and resist ultraviolet light. This physical reflection protects the fragile adhesive layer hidden underneath.

You must evaluate adhesive types carefully before purchasing. Your environment dictates the correct chemical choice. We outline the main categories below.

You must verify manufacturing quality before spending money. Look for established industry-standard certifications. The UL 181 certification serves as a perfect baseline example. HVAC professionals rely on UL 181 as proof of environmental durability and flame resistance. High-quality products proudly display these ratings printed directly on the inner core.

Diagnosing the Leak and Preparing the Surface (Mitigating Failure Risks)

Moisture acts as the natural enemy of initial adhesion. Applying any tape directly over wet, dirty, or greasy surfaces guarantees a failed bond. The adhesive simply sticks to the loose dirt layer instead of the actual substrate. We must eliminate all contaminants first.

Follow this strict surface preparation protocol to mitigate failure risks:

1. Complete Drying: You must temporarily stop or bypass the leak source. Shut off the water supply valve if necessary. The substrate must become bone-dry before application. Even microscopic surface moisture blocks the adhesive polymers from binding securely. Use dry towels and industrial fans to accelerate the drying process.

2. Surface Decontamination: Sweep away all physical debris. Scrape off any loose rust flakes. Degrease the target area using pure isopropyl alcohol or acetone. Strictly avoid standard household cleaners. Common glass cleaners or dish soaps leave a greasy surfactant film behind. This invisible film repels adhesives entirely.

3. Temperature Management: Adhesives rely on specific temperature ranges to cure properly. The ideal application temperature hovers around 70°F (21°C). We call this the sweet spot for maximum initial tack.

You will often face less-than-ideal weather conditions. Cold weather makes adhesives extremely brittle. Use a heat gun on low settings as a cold-weather workaround. Gently warm the substrate and the tape's adhesive side. This restores essential flexibility. Conversely, hot weather makes adhesives excessively soft and stringy. Store your tape rolls in a cool, air-conditioned environment prior to application. This keeps the adhesive stable and manageable during handling.

Execution: Standard Operating Procedure for Waterproof Sealing

Applying tape correctly involves specific mechanical steps. You must transform a simple strip of tape into a permanent structural barrier. Sloppy application ruins even the best materials. Follow these standard operating procedures carefully.

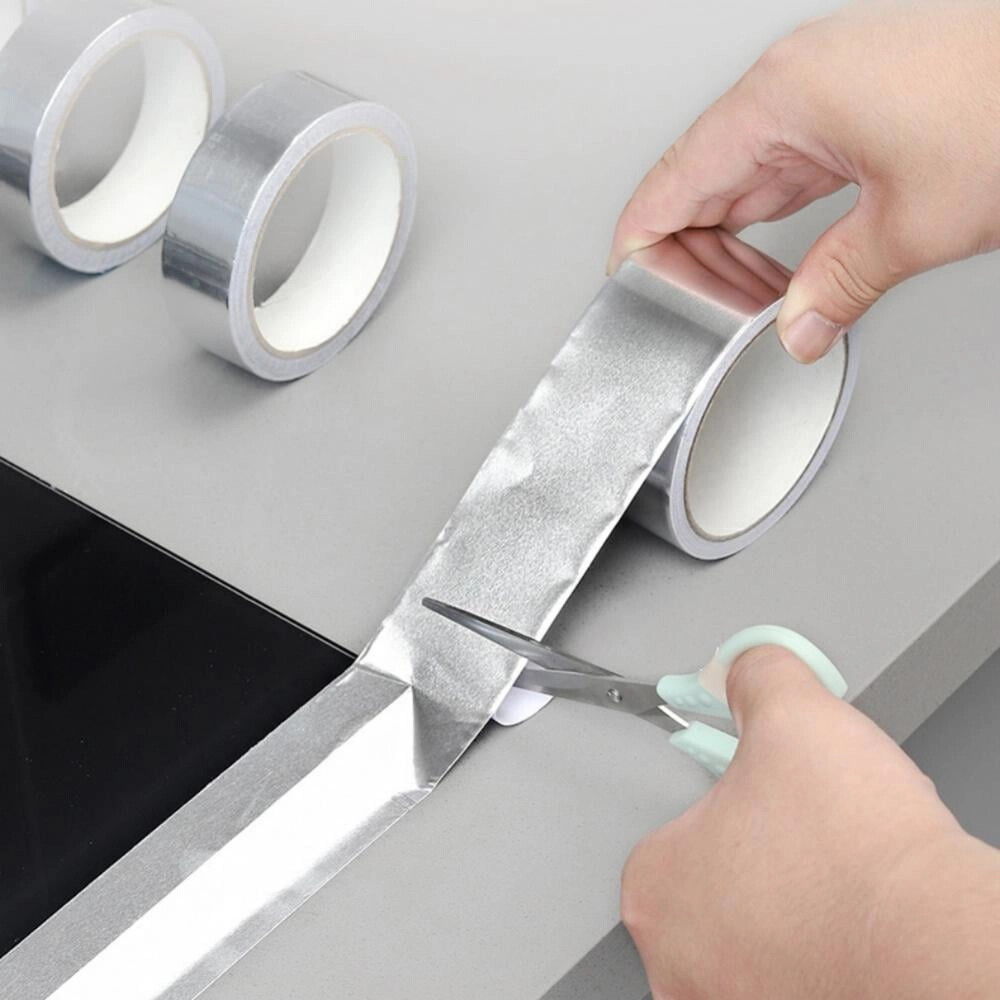

Measure your repair area carefully. Always use sharp utility knives or heavy-duty shears for sizing and cutting. Never tear foil tape by hand. Hand-tearing creates jagged, stretched edges. These uneven borders serve as prime peeling points for future water intrusion. A clean, razor-sharp cut ensures the edges sit perfectly flat against the substrate.

Apply the strip using even, consistent tension. Do not stretch the tape aggressively during the application motion. Aluminum foil possesses a physical memory. If you stretch it, the metal will eventually retract to its original shape. This retraction creates tiny micro-wrinkles along the seal. Water will immediately pool inside these wrinkles and bypass your repair entirely.

Large repairs require overlapping multiple strips. Mandate a minimum overlap of 0.5 inches when managing seams. A full inch is even better for critical outdoor leaks. This deliberate overlap ensures continuous vapor and water sealing. It eliminates vulnerable gaps between the tape strips.

Most high-quality repair products use pressure-sensitive adhesives. They require heavy mechanical bonding to activate the chemical cure. Simply patting the tape down by hand will fail. You must mandate the use of a hard rubber roller or a rigid plastic squeegee. Press down firmly along the entire surface area. This heavy pressure forces out trapped air bubbles. It also pushes the sticky adhesive deep into the surface micro-crevices.

Common Waterproof Repair Scenarios and Limitations

Where does this specific solution actually work best? Let us examine proven real-world scenarios. We often see success in several distinct environments.

• HVAC and Ductwork: Technicians frequently use this method for sealing corroded drip pans. It effectively patches external condensation leaks on metal ducting. The foil backing matches the existing ductwork perfectly, creating an airtight seal.

• Roofing and Gutters: It provides excellent emergency patching for minor tears in metal flashing. You can seal cracked aluminum downspouts effectively. It also secures outdoor dryer vent exhausts exposed directly to harsh weather conditions.

• Temporary Plumbing Fixes: You can wrap low-pressure PVC drainage pipes safely. It temporarily stops slow weeping joints under sinks. Use this strictly as a stopgap measure before scheduling a professional repair.

We must address the physical limits transparently. Aluminum foil tape is absolutely not a structural fix for burst, high-pressure water mains. It serves strictly as a surface barrier. It is never a pressure-containment vessel. High water pressure will simply blow the tape patch right off the pipe. Always replace severely damaged pressurized plumbing lines completely.

Long-Term Performance and Clean Removal Guidelines

You must consider how nature attacks your repair over time. Intense UV exposure slowly breaks down adhesive polymers. Extreme freeze-thaw cycles cause substrates to expand and contract constantly. This daily movement stresses the tape bond. High ambient humidity constantly tests the edges. Therefore, you must inspect all outdoor patches annually. Press down on any lifting edges immediately to prevent further degradation.

Eventually, you will need to remove old or failing foil tape. You want to execute this without damaging the underlying surface. Follow these professional lifecycle management steps for a clean removal.

Never rip old tape off cold. Use a hair dryer or an industrial heat gun for initial heat application. Warm the target area to soften the cured adhesive underneath. Once softened, grab a corner carefully. Pull the tape back slowly at a sharp 45-degree angle. This specific angle minimizes adhesive separation from the metal foil.

Some sticky residue will inevitably remain on the substrate. Use pure isopropyl alcohol or commercial adhesive removers to tackle residue mitigation. Scrub the area safely to clean any lingering tackiness. Finally, perform a thorough soap-and-water rinse. This crucial final step neutralizes all chemical solvents before you apply a fresh patch.

Conclusion

Waterproof sealing depends on both material selection and application quality. Aluminum foil tape can provide a strong moisture and vapor barrier, especially when paired with the correct adhesive chemistry such as butyl rubber for waterproofing needs. However, the surface must be dry, clean, and properly pressed for a lasting seal. JUTU supplies adhesive tape solutions through www.jutulabel.com for sealing, protection, and industrial use. By choosing task-specific foil tape instead of generic repair tape, users can improve waterproof performance and reduce the risk of premature repair failure.

FAQ

Q: Can aluminum foil tape be applied underwater?

A: No. While the tape becomes highly waterproof once fully cured, the adhesive absolutely requires a dry surface to form its initial bond. You must temporarily drain or bypass the water source. Dry the application area completely before sticking the tape down.

Q: How long does a foil tape waterproof repair last?

A: The lifespan depends heavily on the adhesive type and daily UV exposure. Premium acrylic and butyl rubber applications can last for several years. This assumes the area remains undisturbed and you prepped the surface properly beforehand.

Q: Does aluminum tape prevent rust?

A: Yes. It creates an absolute oxygen and moisture barrier over the metal. This barrier halts the immediate corrosion process on metal surfaces. However, you must wire-brush all existing rust flakes off the surface before applying the patch.
