What Is Aluminum Foil Tape Used For?

Aluminum foil tape is mainly used for sealing HVAC ducts, joining insulation materials, sealing pipe joints, creating moisture and vapor barriers, reflecting radiant heat, and providing shielding around selected electrical or electronic components. Its aluminum backing makes it especially useful where ordinary plastic or cloth tape may not provide the required heat, moisture, or barrier performance.

JUTU supplies Aluminum Foil Tape in several adhesive and reinforced constructions for industrial sealing, insulation, piping, HVAC, and electrical applications. The correct type should be selected according to operating temperature, substrate, moisture exposure, required adhesion, backing strength, and whether the tape will be used indoors or outdoors.

What Is Aluminum Foil Tape?

Aluminum foil tape is a pressure-sensitive adhesive tape that uses thin aluminum foil as its main backing. An adhesive layer is applied to one side, and many versions also use a release liner to protect the adhesive before installation. Depending on the intended application, the adhesive may be hot-melt, water-based acrylic, solvent-based acrylic, or another formulation. Reinforced versions may combine aluminum foil with fiberglass scrim or glass cloth to improve tensile strength and resistance to tearing.

The aluminum layer gives the tape several characteristics that distinguish it from common packaging or masking tapes. It creates a low-permeability barrier against moisture and vapor, reflects radiant heat, conforms reasonably well to metal surfaces, and provides a durable metallic outer surface. However, the performance of the finished tape depends on more than the foil itself. Foil thickness, adhesive chemistry, reinforcement, surface preparation, application pressure, temperature, and environmental exposure all determine whether the bond remains reliable.

Where Is Aluminum Foil Tape Commonly Used?

The most common uses can be summarized as follows:

These applications have one thing in common: they benefit from a tape that combines adhesion with a metallic barrier surface.

Aluminum Foil Tape for HVAC Duct Sealing

HVAC is one of the most common applications for aluminum foil tape. Air ducts contain numerous joints, seams, elbows, transitions, access points, and insulation connections where unwanted air leakage can occur. Aluminum foil tape can be applied over properly prepared metal duct seams to create a continuous seal and can also be used to join foil-faced insulation materials around ductwork.

Its aluminum backing is useful because it tolerates temperature changes better than many general-purpose packaging tapes and provides a moisture-resistant outer layer. The reflective surface also matches many foil-faced HVAC insulation products. JUTU's foil tape range includes hot-melt and acrylic adhesive options, and its current product specifications describe hot-melt versions as suitable for pipe sealing, joining, and HVAC applications.

Correct installation is essential. Metal surfaces should be dry and free from oil, dust, condensation, and loose oxidation. The tape should then be pressed firmly with a roller or squeegee so the pressure-sensitive adhesive makes complete contact with the substrate. Applying foil tape over a wet or dusty duct and pressing it lightly by hand can lead to early edge lifting even when the tape itself is suitable.

Aluminum foil tape should also be distinguished from flexible duct repair products. Where a highly conformable, mechanically reinforced tape is needed for general temporary repairs or irregular surfaces, a product such as Cloth Duct Tape may behave differently and may be easier to wrap. For permanent HVAC sealing, however, the required tape should be selected according to the duct system, insulation specification, temperature, and applicable project requirements rather than using the two products interchangeably.

Aluminum Foil Tape for Insulation and Pipe Applications

Aluminum foil tape is widely used to seal the seams of thermal insulation around pipes, ducts, tanks, cooling equipment, and heating systems. Many insulation products use an aluminum-foil facing or reinforced foil laminate as an outer barrier. Foil tape can bridge the joints between adjacent insulation sections so that the outer layer remains more continuous.

This matters because insulation performance depends not only on thermal conductivity but also on moisture control. When humid air reaches a cold pipe or cooling surface, condensation may develop. A properly designed vapor-barrier system helps limit moisture movement into insulation. Aluminum foil tape can form part of this system by closing joints and penetrations in compatible foil-faced materials.

JUTU also offers reinforced aluminum foil tape designed for wrapping thermal insulation used with cooling and heating equipment pipes, building sound-insulation materials, rock wool, and glass-wool systems. Aluminum glass-cloth variants provide additional reinforcement and are intended for applications such as water-vapor sealing and joining aluminum-foil-faced materials.

Foil tape should not, however, be treated as a substitute for the insulation itself. It seals and joins the surface system; it does not provide the same thermal resistance as a thick layer of mineral wool, fiberglass, foam, or another insulation material.

Where the requirement is mainly exterior pipe wrapping rather than joining foil-faced insulation, a product such as PVC Pipe Wrapping Tape may be more suitable depending on the required corrosion protection, flexibility, substrate, and service environment.

Is Aluminum Foil Tape Waterproof?

Aluminum foil itself is an effective barrier to liquid water and water vapor, but calling every aluminum foil tape “waterproof” without qualification can be misleading. The final seal is only as reliable as the adhesive, overlap, surface preparation, edges, and exposure conditions.

Foil tape can be very effective for moisture-resistant sealing around HVAC insulation, pipe insulation, construction joints, and equipment covers. For seams, adequate overlap should be provided, and the tape must be firmly rolled down to remove trapped air and maximize contact. Outdoor use also requires an adhesive designed to tolerate UV exposure, temperature cycling, moisture, and weathering.

Aluminum foil tape should not normally be considered a structural repair for pressurized water pipes. Water pressure, movement, damaged substrates, or large gaps can overwhelm a tape repair. In those situations, the damaged component should be repaired or replaced using the appropriate mechanical method, while foil tape may still be suitable for associated insulation or vapor-barrier work.

Can Aluminum Foil Tape Resist Heat?

Heat resistance is another major reason aluminum foil tape is selected. Aluminum reflects a portion of radiant heat and does not soften in the same way as many polymer-film backings. This makes foil tape useful around insulation, HVAC equipment, heating and cooling systems, and selected industrial components.

However, the temperature limit of the tape is normally determined by the complete construction—especially the adhesive—not just the aluminum backing. Hot-melt, water-based acrylic, and solvent-based acrylic adhesives can behave differently under prolonged heat, cold, humidity, and outdoor exposure. A tape that performs well at moderate HVAC temperatures may not be suitable for direct contact with very hot exhaust pipes, furnaces, or other extreme-temperature equipment.

For heat-management applications, buyers should therefore check both the continuous service temperature and the application temperature. The surface may need to be within a suitable temperature range when the tape is first installed so that the adhesive can wet out properly.

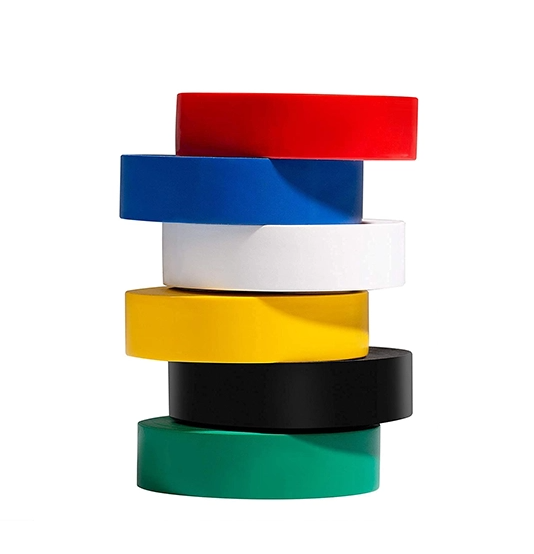

This is also why foil tape should not automatically replace PVC Insulation Tape in electrical work. PVC insulation tape is designed for flexible wire insulation, bundling, and electrical protection, while aluminum foil tape is primarily selected for barrier, heat-reflection, sealing, and certain shielding functions.

Can Aluminum Foil Tape Be Used for Electrical Shielding?

Aluminum foil can interact with electromagnetic fields, so foil tapes are used in some electrical and electronic applications for EMI/RFI shielding, cable wrapping, equipment shielding, and continuity between conductive surfaces. JUTU lists its water-based and solvent-based acrylic aluminum foil tapes for applications that include electronic and electrical cable shielding as well as pipeline sealing.

The exact shielding performance depends on the complete construction. A conductive aluminum backing does not automatically mean the adhesive itself is electrically conductive. If electrical continuity across overlapping tape sections is required, buyers should confirm whether conductive adhesive is specified and whether the system provides the resistance or shielding performance needed by the application.

Foil tape also should not be confused with conventional electrical insulation tape. Aluminum is conductive, so a standard foil tape should never be assumed to provide safe primary electrical insulation around exposed conductors. Applications involving electrical safety should use products specifically designed and rated for that function.

What Other Industrial Uses Does Aluminum Foil Tape Have?

Beyond HVAC and pipe insulation, aluminum foil tape can be used for sealing selected panels, protecting insulation surfaces, joining reflective materials, sealing equipment covers, repairing compatible foil-faced barriers, and supporting thermal-management systems. Reinforced foil tape is useful where greater tensile strength is needed, while glass-cloth-backed foil constructions can be chosen where a more mechanically robust barrier is required.

In automotive and industrial equipment, foil tape may be used around heat shields, insulated panels, cable areas, and other temperature-management locations, provided the actual service temperature is within the product rating. It should not be applied directly to extremely hot exhaust components unless the specific tape has been designed and verified for that temperature.

Construction applications can include insulation joints, vapor-barrier seams, metal-faced panels, and localized weather-resistant sealing. For temporary masking or clean-removal work during painting and finishing, however, Masking Tape is usually a more appropriate product. The backing and adhesive system should always match the purpose rather than selecting tape only by apparent strength.

How to Choose the Right Aluminum Foil Tape

Choosing aluminum foil tape begins with the application environment. Buyers should identify the substrate, service temperature, exposure to moisture or UV, required peel adhesion, mechanical load, insulation structure, and whether reinforcement or electrical shielding is needed. Foil thickness is also important because a thicker backing normally provides greater tensile strength and puncture resistance, while thinner foil can be easier to conform around simple seams and may reduce material cost.

JUTU's current product range illustrates why adhesive choice matters. Its aluminum foil tape line includes hot-melt, water-based acrylic, and solvent-based acrylic options, with foil thicknesses varying across different models. Reinforced FSK and aluminum glass-cloth tapes are also available for applications that require greater mechanical strength or specialized insulation sealing. Instead of asking only for “aluminum foil tape,” industrial buyers should specify the intended application and required performance.

A practical purchasing checklist includes:

Samples should be tested on the actual substrate when the application is demanding. Surface energy, roughness, coatings, dust, temperature, and plasticizers can all affect adhesion.

How to Apply Aluminum Foil Tape Correctly

Good installation begins with surface preparation. Remove dust, oil, grease, loose paint, oxidation, and moisture before applying the tape. If a cleaning solvent is used, allow the surface to dry fully. Cut the tape cleanly rather than stretching or tearing the foil excessively, position it carefully, and avoid trapping large air pockets.

Apply firm pressure across the full width with a roller or squeegee. Pressure-sensitive adhesives develop their bond by making intimate contact with the microscopic texture of the substrate, so simply laying the tape over the seam is not enough. Where multiple strips meet, use sufficient overlap to maintain continuity. Corners, penetrations, and irregular surfaces deserve extra attention because these locations are common starting points for peeling or moisture intrusion.

Avoid applying standard foil tape to wet surfaces unless the specific adhesive is designed for that condition. Also avoid aggressive stretching during installation. Aluminum foil has limited elasticity compared with flexible polymer or cloth backings, and excessive tension can create wrinkles, tearing, or edge lifting.

Aluminum Foil Tape vs Other Adhesive Tapes

Aluminum foil tape is best chosen when metallic barrier performance, heat reflection, moisture resistance, or compatible insulation sealing is required. It is not a universal substitute for every other adhesive tape.

Understanding these differences prevents over-specification and premature tape failure. A tape that performs very well on smooth sheet metal may not be ideal for rough masonry, flexible cable insulation, or temporary paint masking.

Why Choose JUTU Aluminum Foil Tape?

JUTU New Materials Technology Ltd. develops and supplies adhesive tape and label materials for industrial and commercial applications. Its aluminum foil tape range includes hot-melt, water-based acrylic, solvent-based acrylic, reinforced FSK, aluminum glass-cloth, and linerless constructions, allowing tape structure to be matched more closely to different sealing and insulation requirements.

Current product options cover applications including HVAC joining, pipe sealing, thermal-insulation wrapping, cable shielding, pipeline joints, vapor sealing, and aluminum-foil-facing seams. Buyers can compare foil thickness, peel adhesion, tensile strength, adhesive type, reinforcement, and roll dimensions rather than relying on a single generic foil-tape specification.

For industrial purchasing, provide JUTU with the substrate, application, operating temperature, environmental exposure, desired tape width, roll length, required backing strength, adhesive preference, and estimated order quantity. This helps identify a tape construction suited to the actual use rather than simply choosing the thickest or strongest option.

Conclusion

Aluminum foil tape is mainly used for HVAC duct sealing, insulation joining, pipe and vapor-barrier sealing, thermal protection, industrial maintenance, and selected electrical shielding applications. Its aluminum backing provides a useful combination of heat reflection, moisture resistance, low vapor permeability, and metallic surface protection.

Its effectiveness still depends on selecting the correct adhesive and construction. Hot-melt, acrylic, reinforced FSK, and glass-cloth foil tapes serve different environments, and factors such as temperature, surface condition, moisture, UV exposure, tensile strength, and required adhesion should be evaluated before purchasing.

For HVAC and insulation applications, aluminum foil tape is often a better choice than ordinary packaging or cloth tape because it creates a more continuous metallic barrier. For electrical insulation, highly flexible wrapping, pipe protection, or temporary masking, another specialized adhesive tape may be more appropriate.

JUTU offers multiple aluminum foil tape constructions for sealing, insulation, piping, HVAC, and industrial applications. Matching the product specification to the actual environment is the most reliable way to achieve stable adhesion and long-term sealing performance.

FAQ

What is aluminum foil tape mainly used for?

Aluminum foil tape is mainly used for HVAC duct sealing, insulation joints, pipe insulation, vapor barriers, heat-reflective sealing, industrial maintenance, and selected electronic shielding applications.

Can aluminum foil tape be used on HVAC ducts?

Yes. HVAC ductwork is one of its most common applications. The surface should be clean and dry, and the tape should be pressed firmly over the joint or seam.

Is aluminum foil tape waterproof?

The aluminum backing is resistant to water and vapor, but overall waterproof performance depends on the adhesive, substrate, overlap, edge sealing, and application conditions. It should not replace a structural repair on a pressurized water pipe.

Is aluminum foil tape heat resistant?

Yes, suitable foil tapes can tolerate elevated temperatures, but the actual limit depends mainly on the adhesive and total tape construction. Always check the manufacturer's specified service-temperature range.

Can aluminum foil tape be used outdoors?

Some aluminum foil tapes are designed for outdoor exposure, but UV resistance, weather resistance, moisture, and temperature cycling should be confirmed for the specific product.

Can aluminum foil tape be used for insulation?

Yes. It is widely used for joining foil-faced insulation, sealing pipe-insulation joints, wrapping insulation systems, and helping maintain vapor-barrier continuity.

Can aluminum foil tape be used on electrical wires?

It can be used for certain shielding applications, but ordinary aluminum foil tape should not be treated as primary electrical insulation because aluminum is conductive. Electrical insulation should use a tape specifically designed for that purpose.

Does aluminum foil tape block EMI or RFI?

Aluminum foil can provide electromagnetic shielding, but system performance depends on backing conductivity, adhesive type, overlap, grounding, and electrical continuity. Conductive adhesive may be required for some shielding designs.

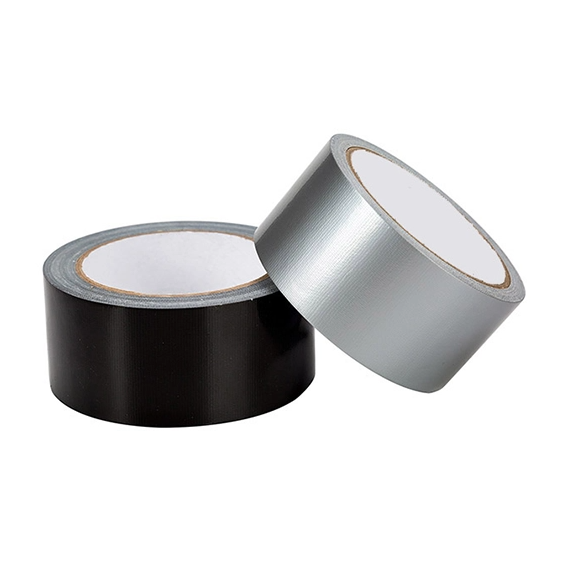

What is the difference between aluminum foil tape and duct tape?

Aluminum foil tape uses a metallic foil backing and is better suited to HVAC, insulation, vapor sealing, and heat-reflective applications. Cloth duct tape is more flexible and mechanically reinforced for general repairs and bundling.

What adhesive is used on aluminum foil tape?

Common systems include hot-melt and acrylic adhesives. JUTU currently offers hot-melt, water-based acrylic, and solvent-based acrylic aluminum foil tape constructions.

How should aluminum foil tape be applied?

Clean and dry the substrate, cut the tape to size, place it without excessive stretching, provide suitable overlap at joints, and press firmly with a roller or squeegee across the entire bonded area.

How do I choose aluminum foil tape for industrial use?

Check the substrate, operating temperature, moisture exposure, foil thickness, adhesive type, peel adhesion, tensile strength, reinforcement, outdoor conditions, roll dimensions, and any required shielding or insulation performance.
