Best Aluminum Foil Tape for Insulation Projects

High-quality insulation relies entirely on the structural integrity of its seams. A minor adhesion failure compromises system efficiency, leading directly to temperature fluctuations and inflated energy bills. Without a proper vapor barrier, even premium insulation materials lose their thermal effectiveness over time. Many buyers default to standard utility tapes for quick repairs. However, professional insulation requires specialized aluminum foil tape engineered for severe thermal fluctuation, high moisture resistance, and long-term durability. Relying on generic hardware store options often results in brittle adhesives and sudden system leaks. This guide breaks down how to evaluate, shortlist, and properly apply industrial-grade foil tapes. You will learn the chemical differences between adhesives and how to prepare surfaces for maximum bond strength. We will help you secure your thermal systems to ensure decades of reliable sealing without peeling, wrinkling, or sudden adhesive failure.

Key Takeaways

• Application Over Brand: Even the most expensive aluminum foil tape will fail within years without proper surface degreasing and mechanical pressure to activate the adhesive.

• Material Matching: Selection must dictate based on extreme temperatures (silicone adhesives) vs. standard HVAC runs (acrylic adhesives).

• Safety & Compliance: Standard "duct tape" is hazardous for thermal applications; always require UL-rated (e.g., UL 723) foil tapes for insulation and ductwork.

• Structural Variations: Solutions range from "dead soft" unlined foil for complex curves to Foil-Scrim-Kraft (FSK) composites for high-stress, exposed environments.

The Role of Adhesive Tapes in Thermal Insulation

Air leaks in HVAC systems and insulation barriers lead to heavy equipment strain. They also cause massive energy loss. Success requires a permanent, vapor-proof seal. This seal must mimic the exact properties of the insulation backing itself. If you use the wrong product, system pressure will eventually blow out the weak joints. Moisture ingress then follows, promoting mold growth and degrading the insulation material.

This brings us to the dangerous "duct tape" fallacy. Many beginners use traditional cloth-backed duct tape on ductwork or thermal insulation. This is a severe industry mistake. Heat degrades standard rubber adhesives rapidly. They dry out, become brittle, and fail completely. Professional builders never use standard cloth tape for thermal sealing. It simply cannot handle the intense heat cycles of HVAC operation.

When sealing joints, professionals choose between mastic and foil tape. Each serves a specific purpose in building science.

• Mastic: Best for irregular, dirty, or hard-to-reach joints. You apply it as a wet paste. It forms a thick, inflexible shell when dry. It is highly effective but incredibly messy to apply, requiring brushes and gloves.

• Foil Tape: Optimal for clean, straight, and rigid runs. It provides a uniform vapor barrier and a highly professional aesthetic. Using specialized Adhesive Tapes ensures superior thermal reflectivity and long-lasting hold on flat, metallic surfaces.

Core Evaluation Dimensions for Aluminum Foil Tape

Choosing the right tape requires evaluating three critical dimensions. The adhesive chemistry acts as the true anchor of longevity. Backing thickness determines malleability around corners. Safety standards ensure full building code compliance. Ignoring any of these dimensions leads to rapid installation failure.

Let us examine the chemical makeup of different adhesives. The adhesive type completely dictates the tape's functional environment.

Next, consider backing thickness and malleability. Professional grades use "dead soft" aluminum. These foils usually measure between 2 and 3.6 mils thick. Dead soft material completely lacks "memory." It conforms perfectly to irregular surfaces without springing back into its original shape. Thicker tapes resist tearing, but they struggle to wrap around sharp curves. Thinner foils bend easily but risk puncture during handling.

Finally, you must verify safety and compliance standards. Building codes strictly regulate flame spread and smoke development. Always check for ASTM E84 or UL 723 ratings on the product label. These testing certifications guarantee the tape will not accelerate a fire or produce toxic smoke in commercial buildings. Building inspectors routinely fail projects missing these UL-rated stamps. Never skip this verification step when purchasing materials.

Solution Categories: Matching Tape Type to the Project

Manufacturers offer diverse structural variations to solve specific field problems. You must match the tape type directly to your project needs. Using a standard foil on a heavy-duty application guarantees a callback.

First, you will encounter un-lined versus lined foil tapes. Their application speeds differ drastically.

• Un-lined Foil Tapes: These feature no paper backing. They allow for much faster application on long, straight duct sealing jobs. You can unroll and apply them continuously like standard packing tape.

• Lined Foil Tapes: These use a paper release liner. They are essential for precise measuring and pre-cutting. The liner prevents premature sticking when working on complex insulation joints. It also aids heavily in EMI/RFI shielding installations where precision placement is crucial.

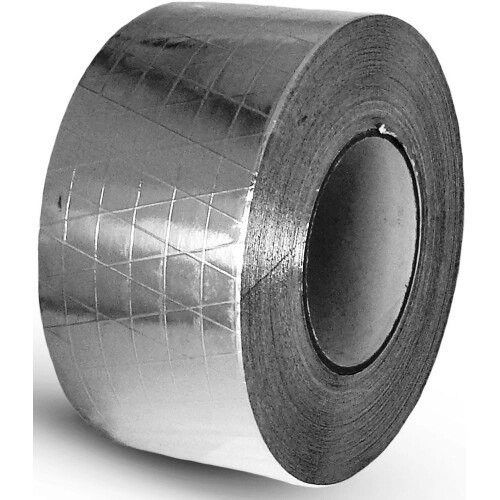

Next is Foil-Scrim-Kraft (FSK) tape. This composite material incorporates a fiberglass mesh and kraft paper behind the foil. It offers massive tensile strength. FSK tape is the best choice for heavy-duty, exposed insulation wraps. The reinforcing mesh prevents rips in high-stress environments like open warehouses or industrial basements. If a worker brushes against the ductwork, FSK resists tearing far better than pure foil.

Finally, the industry offers composite or polyethylene-backed foil tapes. Pure metal foils often have razor-sharp edges. They can easily slice unprotected fingers during installation. Polyethylene-backed Aluminum Foil Tape eliminates this danger entirely. These innovative solutions are often hand-tearable. You can reposition them easily without creating permanent wrinkles. This improves both worker safety and overall application speed in tight attic spaces.

Implementation Realities & Application Risks

Even premium tapes fail if installed poorly. The dreaded "3-year peeling" risk plagues many residential and commercial installations. Field workers often watch foil tape edges curl and detach after just a few seasons. Tape failure is rarely a manufacturing defect. It is almost always a direct result of improper application technique.

Strict surface preparation is mandatory. Adhesives cannot bond to dust, oil, or condensation. You must clear the surface energy barrier before taping. We highly recommend following a strict cleaning protocol.

1. Brush the surface: Remove loose dust, stray insulation fibers, and dirt using a stiff bristle brush.

2. Degrease the joint: Wipe metal or rigid insulation surfaces with a strong, fast-evaporating degreaser. Isopropyl alcohol or acetone works best.

3. Allow total drying: Wait until all liquid solvents evaporate completely. Trapped moisture destroys adhesive bonds instantly.

Temperature significantly affects adhesion. Pressure-sensitive adhesives (PSAs) perform best within specific temperature bands. The ideal application environment sits around 70°F (21°C). Applying tape in freezing conditions severely limits its initial tack. The adhesive becomes rigid and refuses to flow into the microscopic pores of the metal. If you must work in the cold, keep the tape rolls inside a warm truck cab beforehand.

You must also follow the pressure activation rule. Aluminum foil tapes utilize PSAs. They do not stick permanently upon initial, gentle contact. You must forcefully rub the tape post-application. Use a plastic squeegee, a dedicated paddle, or a balled-up release liner. This friction activates the adhesive chemical bonds. It pushes the polymer into the substrate and removes microscopic air bubbles that cause future peeling.

Lastly, mind your joint overlaps. We recommend at least a half-inch overlap on all seams. Thermal expansion causes ductwork to swell and shrink daily. A half-inch overlap guarantees a continuous thermal and moisture barrier as materials shift over time.

Shortlisting Logic & Vendor Selection

Choosing the right tape vendor involves navigating a crowded, noisy market. You must weigh brand authority against cheap white-label alternatives. Professional sheet metal workers strongly prefer trusted, professional-grade manufacturers. Brands like Nashua, Berry, 3M, and Polyken hold excellent industry reputations for a reason. Generic retail brands often cut costs by thinning the adhesive layer or using sub-par foil. This leads to premature failure and costly callbacks.

Budgeting for durability is a straightforward process. Cost expectations typically range from $5 to $30 or more per roll. This price depends heavily on the adhesive type, foil thickness, and safety certifications. Trying to save $10 on a roll of tape is an irrational tradeoff. You risk the integrity of a $5,000 HVAC or insulation installation just to save a few dollars on sealing. Cheap tapes always cost more in eventual repair labor.

Before finalizing your procurement, thoroughly audit your specific project needs. Map out the environmental conditions completely. Consider these practical questions:

• Is the project strictly indoor, or will it face outdoor weather and direct UV exposure?

• What is the absolute maximum operating temperature the joint will experience during peak load?

• Will the application involve long straight pipe runs or highly flexible, complex curves requiring dead soft foil?

Answering these questions ensures you purchase the exact specification required. It prevents over-engineering simple jobs while securing high-risk environments against catastrophic leaks. Also, pay attention to product shelf life. Most acrylic and silicone PSAs maintain peak performance for 12 to 24 months in storage. Avoid buying deeply discounted surplus rolls that might be expired.

Conclusion

Thermal insulation performance depends heavily on seam integrity. The right aluminum foil tape helps create a continuous vapor barrier, resist moisture, and maintain insulation efficiency over time. Adhesive chemistry, foil thickness, backing type, and safety compliance should all be considered before purchase. JUTU offers adhesive tape products through www.jutulabel.com for sealing, bonding, surface protection, and industrial applications. For insulation projects, choosing a suitable foil tape and applying it with proper surface cleaning and pressure activation can reduce peeling, leaks, and long-term maintenance problems.

FAQ

Q: Can you use standard duct tape instead of aluminum foil tape on insulation?

A: No. Standard cloth-backed duct tape uses rubber-based adhesives that quickly dry out, become brittle, and fail completely. When exposed to the intense heat cycles of HVAC systems or thermal insulation, standard duct tape loses its bond and peels away, compromising your entire vapor barrier.

Q: How do you remove old foil tape residue?

A: Use a heat gun on a low setting to gently soften the aged adhesive. Peel the tape back slowly at a 45-degree angle to minimize tearing. Once removed, dissolve the remaining sticky residue using isopropyl alcohol or commercial adhesive removers, and wipe it clean with a rag.

Q: Does foil tape require a release liner?

A: Not always. Un-lined tapes exist for rapid, continuous application on straight runs. However, lined tapes are far superior for precise measurements, navigating complex shapes, or handling heavy-duty FSK applications. The paper liner prevents the tape from sticking to itself during intricate installations.

Q: Is aluminum foil tape waterproof?

A: Most foil tapes are highly moisture-resistant and function as excellent vapor barriers for standard HVAC use. For true waterproofing in pooling water or exterior rain environments, an aluminum tape with a butyl rubber adhesive is required to maintain a permanent, watertight seal.
